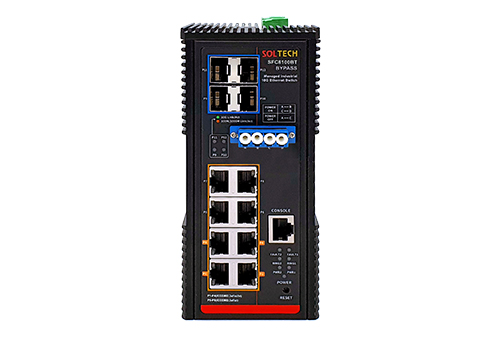

sfc8100bt-bp_2x2
1Gbps TP 8포트 + 10G SFP 4슬롯 + BYPASS 2×2, PoE 240W, 동작온도: -40~80°C, 산업용…
sfc8100bt-bp_2x2
1Gbps TP 8포트 + 10G SFP 4슬롯 + BYPASS 2×2, PoE 240W, 동작온도: -40~80°C, 산업용 스위치
Key Features
- 10/100/1000Mbps 8PoE +100M/1G/10Gbps SFP+ 4슬롯
- 웹 관리, 콘솔, Telnet, SSH, SNMP, RMON, Syslog
- Scan Manager Program 지원
- STP(IEEE 802.1D) / RSTP(IEEE802.1w) /MSTP(IEEE802.1s)
- Port VLAN & VLAN Tagging(IEEE802.1Q)
- S-Ring(절체, 복구 30ms), Dual-Ring
- Carrier Ethernet (G.8032 ERPS)
- IP Multicast support (IGMP/MLD)
- Priority Queue Support (8 Queue per port)
Download
Specifications
Standards
IEEE 802.3/3u 10BaseT/100BaseTX and 100BaseFX
IEEE 802.3ab/3z 1000BaseT/1000Base-X Fiber
IEEE 802.3ae 10 Gigabit Ethernet
IEEE 802.1w Rapid Spanning Tree Protocol
IEEE 802.1s Multiple Spanning Tree Protocol
IEEE 802.1Q VLAN Tagging
IEEE 802.3ad Port trunk with LACP
ITU-T G.8032 Ethernet Ring Protection Switching
IEEE 802.3af/at/bt Power over Ethernet
TP 포트
광 포트(10G)
콤보 포트
8 TP(1Gbps)
10G SFP 4슬롯
-
POE포트
4 PoE(af/at) + 4 PoE(af/at/bt)
PoE Max. 240W
Switch Fabric
Throughtput
Memory(RAM)
Flash Memory
MAC Table
Jumbo Frame
96Gbps
71.4Mpps
256MB
16MB
32K
10K
IEEE 802.1x NAC
802.3ad LACP
IGMP Snooping
STP/RSTP/MSTP
G.8032 ERPS Ring
S-Ring
O
O
O
O
O
O
입력전원
무부하전력
최대전력
전원이중화
DC 54~56V
15.9W
267.2W
O
동작온도
설치방법
크기
-40ºC ~ 70ºC
Wall or Din-Rail Mount
74(W) x 130(D) x 166.5(H)mm
