광 트랜시버
광통신 부품 악세사리
Key Features
- 깊이와 너비가 모두 감소하여 선반에 장착 가능
- 팬 없는 냉각방식 채택 (XS-S1930J 24GT4SFP/2GT-P 제외)으로 에너지 절약 및 소음 감소
- 엔터프라이즈 제품 디자인 표준에 따라 설계로 서지, EMC, 및 신뢰성 시험 통과
- 더 넓은 온도 범위(-5°C ~ 55°C)로 제품의 환경적 적용성을 향상
- 간단하고 쉬운 네트워크 유지 관리(웹, SNMP)
Specifications
| 모델 | 사양 |
|---|---|
| MINI-GBIC-SX-MM850 | 1000BASE-SX, SFP Transceiver, MM (850nm,550m, LC). |
| MINI-GBIC-LX-SM1310 | 1000BASE-LX, SFP Transceiver, SM (1310nm,10km, LC). |
| Mini-GBIC-GT | 1000BASE-TX, SFP Transceiver (100m). |
| Mini-GBIC-GT(F) | 1.25Gbps 1000Base-T GT Copper module, SFP transceiver, RJ45, Used with UTP-CAT5 and above cables, 100m Applicable to RG-S6250-48XS8CQ/RG-S6510-48VS8CQ(V2.0)/M6500-24VS2CQ product only. |
| MINI-GBIC-LH40-SM1310 | 1000BASE-LH, SFP Transceiver, SM (1310nm, 40km, LC). |
| MINI-GBIC-ZX80-SM1550 | 1000BASE-ZX, SFP Transceiver, SM (1550nm, 80km, LC). |
| GE-SFP-LX20-SM1310-BIDI | 1000BASE-LX, SFP Transceiver, BIDI-TX1310/RX1550,20km,LC |
| GE-SFP-LX20-SM1550-BIDI | 1000BASE-LX, SFP Transceiver, BIDI-TX1550/RX1310,20km,LC |
| GE-SFP-LH40-SM1310-BIDI | 1000BASE-LH, SFP Transceiver, BIDI-TX1310/RX1550,40km,LC |
| GE-SFP-LH40-SM1550-BIDI | 1000BASE-LH, SFP Transceiver, BIDI-TX1550/RX1310,40km,LC |
| 2.5G-SFP-LX03-SM1310-BIDI-I | 2.5GBASE-LX, SFP transceiver, TX1310/RX1550, BiDi LC, 3 km over SMF |
| 2.5G-SFP-LX03-SM1550-BIDI-I | 2.5GBASE-LX, SFP transceiver, TX1550/RX1310, BiDi LC, 3 km over SMF |
| XG-SFP-SR-MM850 | 10GBASE-SR, SFP+ Transceiver, MM (850nm, 300m, LC). |
| XG-SFP-LR-SM1310 | 10GBASE-LR, SFP+ Transceiver, SM (1310nm, 10km, LC). |
| XG-SFP-ER-SM1550 | 10GBASE-LR, SFP+ Transceiver, SM (1550nm, 40km, LC). |
| XG-SFP-AOC1M | 10GBASE SFP+ Optical Stack Cable (included both side transceivers) , 1 Meter |
| XG-SFP-AOC3M | 10GBASE SFP+ Optical Stack Cable (included both side transceivers), 3 Meter |
| XG-SFP-AOC5M | 10GBASE SFP+ Optical Stack Cable (included both side transceivers), 5 Meter |
| VG-SFP-SR-MM850 | 25G SR Fiber module, SFP 28 transceiver, 70m (OM3)/ 100m (OM4) (LC, 850mm) |
| VG-SFP-LR-SM1310 | 25G LR Fiber module, SFP 28 transceiver, 10km (LC, 1310nm) |

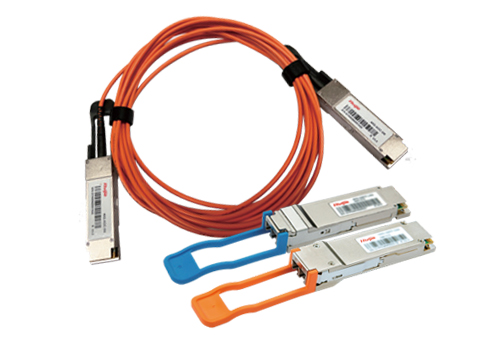

| 40G-AOC-5M | 40G QSFP+ Optical Stack Cable (included both side transceivers), 5 Meters |
| 40G-QSFP-SR-MM850 | 40GBASE-SR, QSFP+ Transceiver, MM (850nm, 100m with OM3 fiber, 150m with OM4 fiber, MPO). |
| 40G-QSFP-LR4-PSM-SM1310 | 40GBASE-LR4, QSFP+ Transceiver, SM (1310nm, 10km , MPO). |
| 40G-QSFP-iLR4-SM1310 | 40GBASE-CWDM4, QSFP+ Transceiver, SM (1264nm-1337nm, 2km , Duplex LC). |
| 40G-QSFP-LX4-SM1310 | 40GBASE-LX4, QSFP+ Transceiver, SM/MM (1264nm-1337nm, 40km , 150m with OM3/OM4 fibre, 2km with SMF, Duplex LC). |
| 100G-AOC-3M | 100G QSFP28 Optical Stack Cable (included both side transceivers), 3 Meters |
| 100G-AOC-5M | 100G QSFP28 Optical Stack Cable (included both side transceivers), 5 Meters |
| 100G-AOC-10M | 100G QSFP28 Optical Stack Cable (included both side transceivers), 10 Meters |
| 100G-QSFP-SR-MM850 | 100GBASE-SR, QSFP28 transceiver (850nm, 100m with OM4 fiber) |
| 100G-QSFP-LR4-SM1310 | 100G LR single-mode fiber module, QSFP28 transceiver, 10km (LC, dual-core, 1310nm) |
| 100G-QSFP-iLR4-SM1310 | 100G iLR fiber module, QSFP28 transceiver, 2km (LC, dual-core, 1310nm) |
| 100G-QSFP-ER4-SM1310 | 100G ER4 module, QSFP28 form factor, LC, 1310 nm, 40 km (131,233.59 ft.) over SMF |
| 400G-QDD-SR8-MM850 | 400G SR8 module, QSFP-DD form factor, MPO-16 APC, 850 nm, 100 m (328.08 ft.) over MMF |
| 400G-QDD-DR4-SM1310 | 400G DR4 module, QSFP-DD form factor, MPO-12 APC, 1310 nm 500 m (1,640.42 ft.) over SMF |
| 400G-QDD-FR4-SM1310 | 400G FR4 module, QSFP-DD form factor, LC, 1310 nm, 2 km (6,561.68 ft.) over SMF |
| 400G-QDD-AOC3M | 400G QSFPDD Optical Stack Cable (included both side transceivers), 3 Meters |
| 400G-QDD-AOC5M | 400G QSFPDD Optical Stack Cable (included both side transceivers), 5 Meters |
